Vehicle Control Loading

E2M vehicle control loading actuators are well suited for high-end racing simlators as well as for other vehicle RnD or training simulators. A range of actuators is available to deliver force feedback on steering wheels, pedals, seat belts, or other control elements.

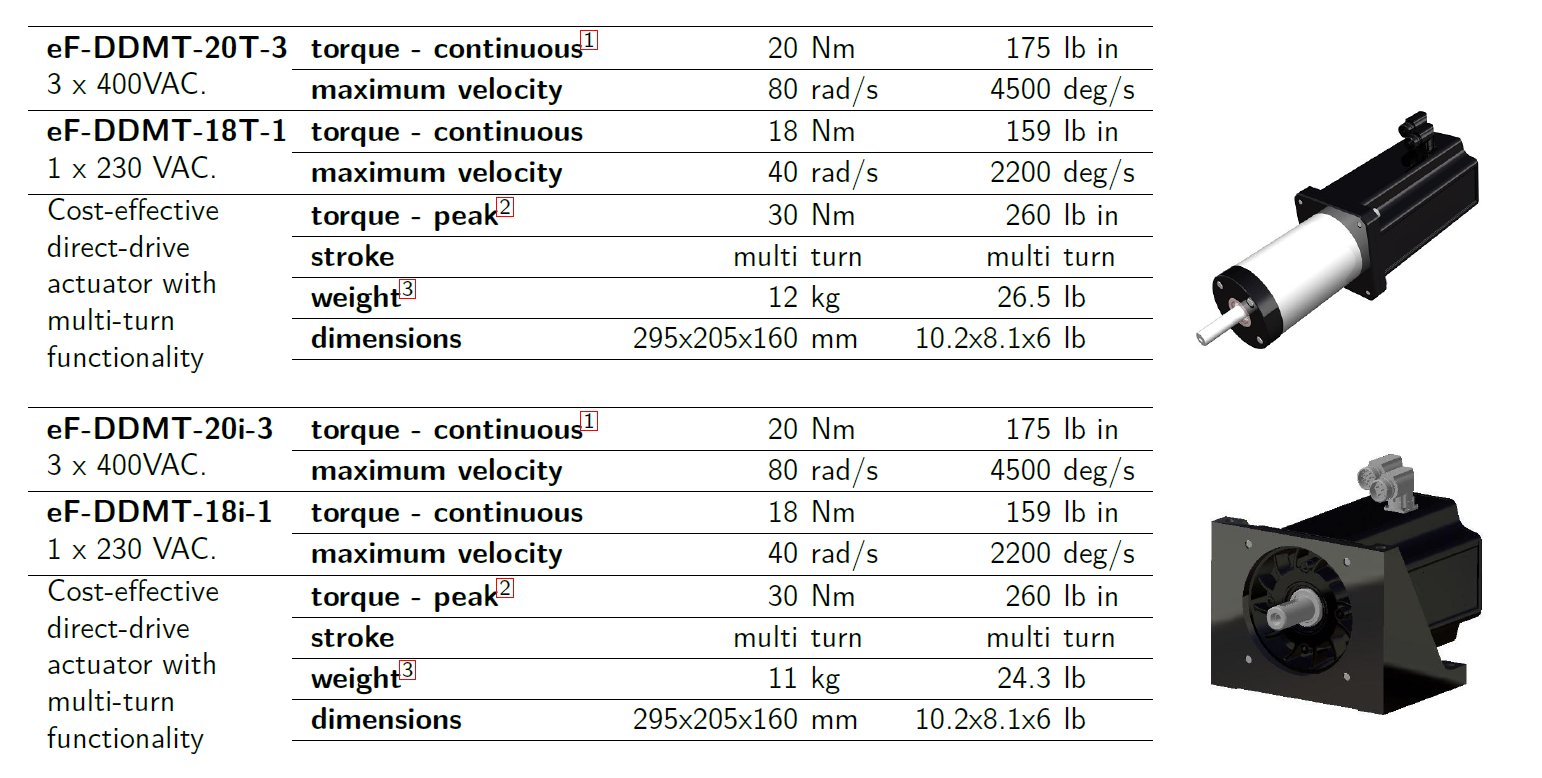

Direct drive

The 20 Nm direct drive control loader is designed to provide smooth, precise force feedback for steering wheels or seat belts tension. It features a specialized torque load cell for accurate torque measurement in multi-turn applications. Available in both 3-phase and 1-phase configurations, with or without the torque load cell housing.

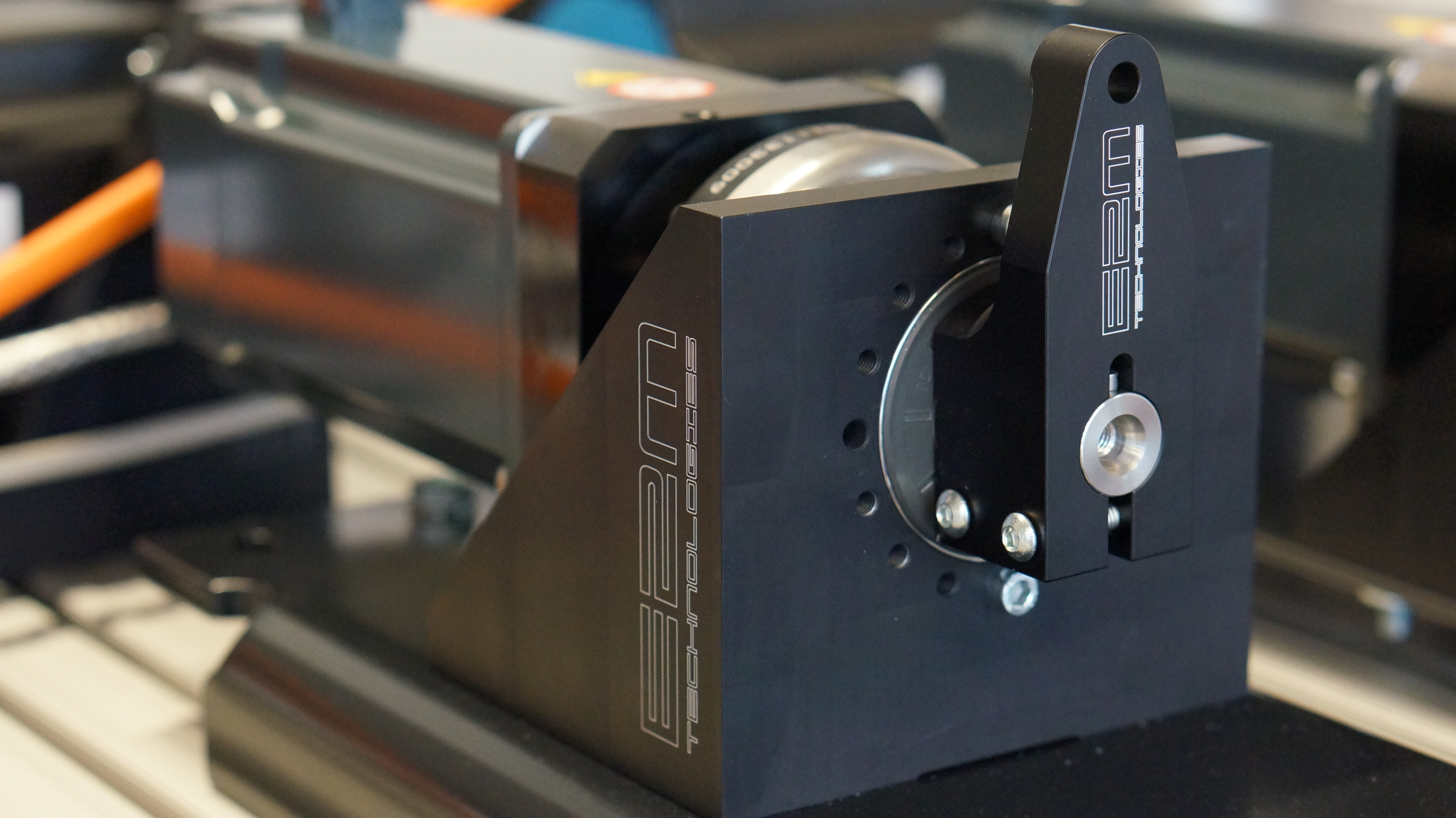

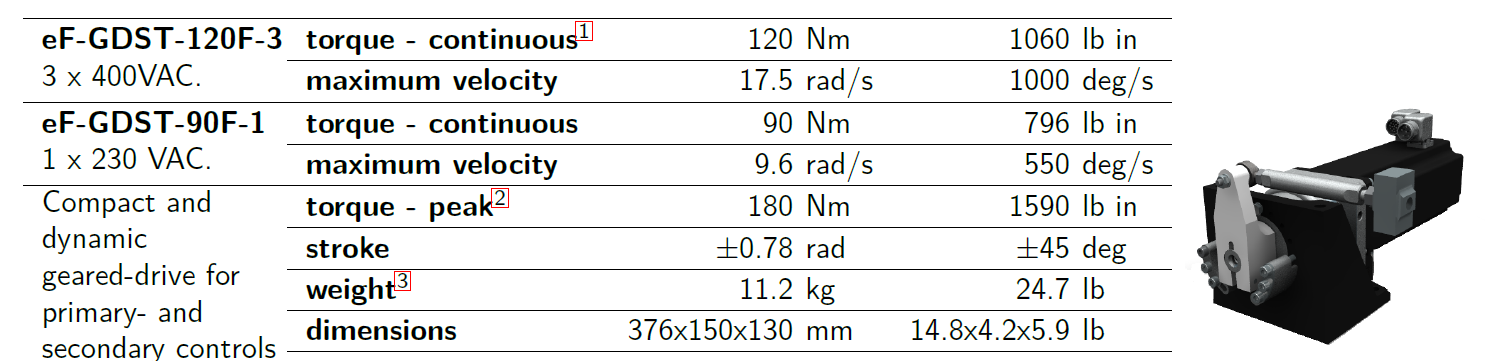

Geared drive

The geared drive control loader is a compact and high-performance actuator designed for operating in tight spaces and capable of handling heavy loads. It is mostly utilized for brake and/or throttle pedal control in racing or military simulators. Available in both 3-phase and 1-phase configurations.

1defined as 20% intermittent duty cycle, indicated as S3 20%

2can be maintained for 2 seconds

3including motor, including axis, including brackets, excluding loadcell, excluding connectors.
